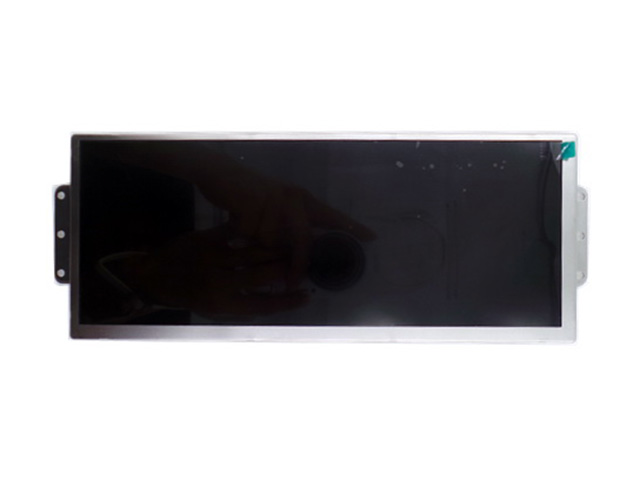

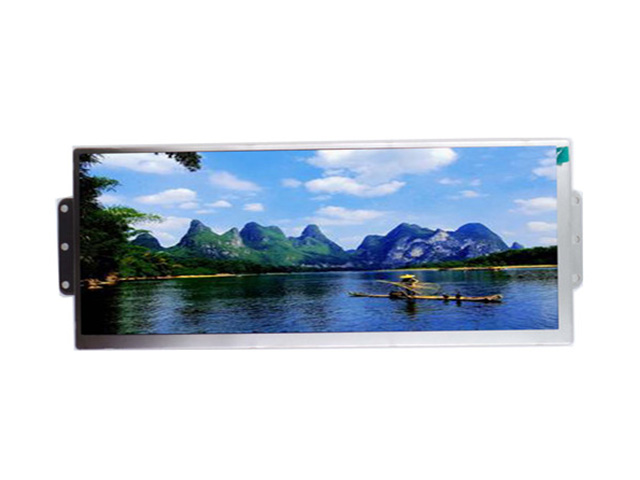

| PartNumber | S091WX02 |
| Brand | CDTECH |
| Size | 9.1 |
| Application | Industrial Stretched |
| Resolution | 1280×480 |
| Composition | LCM , a-Si TFT-LCD |
| Brightness | |
| CR | 800:1 |
| Colors | 16.7M |
| Backlight | 3S12P WLED , 30K hours , No Driver |
| Interface | LVDS |
| Manufacturer | CDTECH |
| Model Name | S091WX02 |
| Screen Size | 9.1 inch (3/5 cut of 10.1") |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1280(RGB)×480 (DVGA) 149PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 216.96 × 81.36 (H×V) |
| Outline(mm) | 231.6 × 94.7 (H×V×D) |
| Bezel Area(mm) | 220.46 × 84.86 (H×V) |
| Treatment | - |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 10/15 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | IPS, Normally Black, Transmissive |
| Color Depth | 16.7M |
| Mass | TBD |
| Used for | Industrial Stretched Bar LCD |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 8-bit) , 40 pins Connector |
| Voltage Supply | 2.5/8.2/22/-7V (Typ.)(VDD/AVDD/VGH/VGL) |
| Max. Ratings | Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 60 °C |
