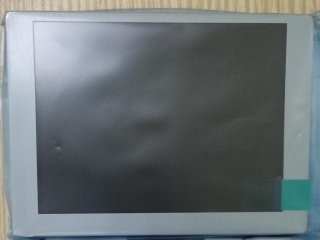

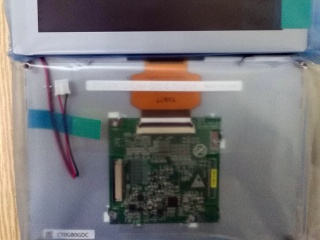

| PartNumber | STCG057QVLAM-G02-S |
| Brand | Kyocera |
| Size | 5.7 |
| Application | Industrial |
| Resolution | 320×240 |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | |
| CR | 700:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | Parallel |
| Model | STCG057QVLAM-G02-S |
| Diagonal Size | 5.7 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel Format | 320(RGB)×240 [QVGA] 70PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 115.2(H)×86.4(V) mm |
| Outline Dim. | 144(H)×104.8(V) ×13.5(D) mm |
| Bezel Area | 118.4(H)×89.0(V) mm |
| Treatment | Glare (Haze 0%) |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| View Direction | - |
| Response Time | 10/25 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥5) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 60% NTSC |
| Light Source | WLED , 40K hours , W/O Driver |
| Weight | 158g (Typ.) |
| Designed For | Industrial |
| Frame Rate | - |
| Touch Panel | Without |
| Interface Type | Parallel RGB (1 ch, 6-bit) , 33 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
