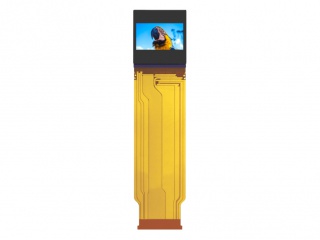

| PartNumber | SY083WAM01 |
| Brand | SeeYA |
| Size | 0.83 |
| Application | HMD VR AR |
| Resolution | 2560×1440 |
| Composition | OLED, Si-OLED |
| Brightness | |
| CR | 500000:1 |
| Colors | 16.7M |
| Backlight | self |
| Interface | MIPI |
| Manufacturer | SeeYA |
| Model Name | SY083WAM01 |
| Screen Size | 0.83 inch |
| Screen Type | OLED, Si-OLED |
| Pixel Number | 2560(RGB)×1440 (Quad-HD) 3527PPI |
| Arrangement | RGB π type |
| Active Area(mm) | 18.432 × 10.368 (H×V) |
| Outline(mm) | 21.09 × 22.77 × 1.58 (H×V×D) |
| Luminance | 1800 cd/m² (Typ.) |
| Contrast Ratio | 500000 : 1 (Typ.) (TM) |
| Viewing Angle | - |
| Response | 1 (Max.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | - |
| Color Depth | 16.7M 85% DCI-P3 |
| Mass | - |
| Used for | HMD VR AR |
| Refresh Rate | 90Hz |
| Touchscreen | - |
| Signal Type | MIPI (2 ch, 4 data lanes) , FPC 81 pins |
| Max. Ratings | Storage Temp.: -40 ~ 80 °C Operating Temp.: -20 ~ 60 °C |
