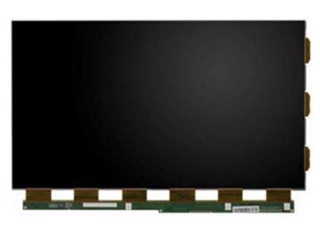

| PartNumber | T215HVN05.0 CELL |
| Brand | AUO |
| Size | 21.5 |
| Application | Desktop Monitor TV S |
| Resolution | 1920×1080 |
| Composition | CELL , a-Si TFT-LC |
| Brightness | |
| CR | 3000:1 |
| Colors | 16.7M |
| Backlight | No B/L |
| Interface | LVDS |
| Manufacturer | AUO |
| Screen Size | 21.5 inch |
| Pixel Number | 1920(RGB)×1080 (FHD) 102PPI |
| Active Area(mm) | 476.064 × 267.786 (H×V) |
| Bezel Area(mm) | - |
| Luminance | 0 cd/m² |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Good View at | Symmetry |
| Glass Thickness | 0.50+0.50 mm |
| Color Depth | 16.7M 76% NTSC |
| Mass | 415g (Typ.) |
| Refresh Rate | 60Hz |
| Driver IC list | Built-in COF 6 source chips |
| Signal Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Model Name | T215HVN05.0 CELL |
| Screen Type | CELL , a-Si TFT-LCD |
| Arrangement | RGB Vertical Stripe |
| Outline(mm) | 483.864 × 278.386 × 1.41 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Contrast Ratio | 3000 : 1 (Typ.) (TM) |
| Response | 13/5 (Typ.)(Tr/Td); 28 (Typ.)(G to G) ms |
| Work Mode | VA, Normally Black, Transmissive |
| Transmissivity | 3.6% (Typ.)(with Polarizer) |
| Used for | Desktop Monitor TV Sets |
| Touchscreen | Without |
