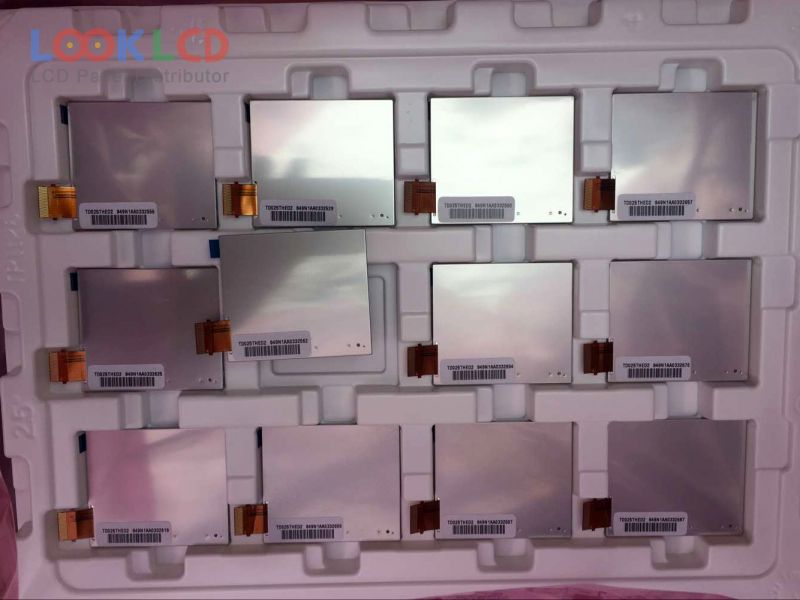

| PartNumber | TD025THED2 |
| Brand | TPO |
| Size | 2.5 |
| Application | MPH |
| Resolution | 320(RGB)×240 , QVGA |
| Composition | LCM |
| Brightness | 300 cd/m² (Typ.) |
| CR | 350:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | TTL |
| Panel Brand | TPO |
| Panel Model | TD025THED2 |
| Panel Type | LTPS TFT-LCD , LCM |
| Panel Size | 2.5 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 49.92×37.44 mm |
| Outline | 56.4×49.12×2.5 mm |
| Surface | |
| Contrast Ratio | 350:1 (Typ.) |
| Display Colors | 262K (6-bit), CIE193170% |
| Response Time | 20 (Typ.)(Tr+Td) |
| Viewing Angle | 55/55/55/55 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLEDWithout Driver |
| Signal Interface | Parallel RGB (1 ch, 6-bit) + SPI, 39 pins |
| Input Voltage | 1.8/2.8V (Typ.)(VDDI/VDD) |
