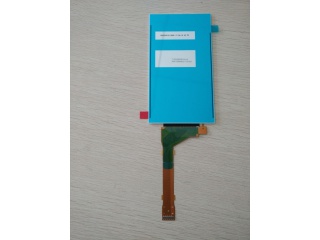

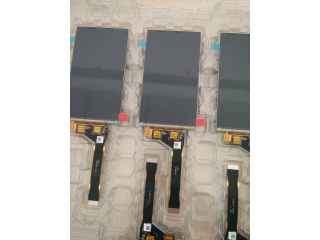

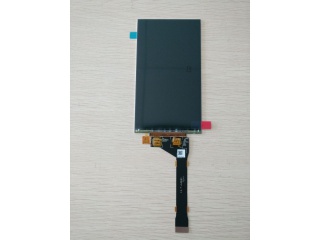

| PartNumber | TL055BDXP03 |
| Brand | TIANMA |
| Size | 5.5 |
| Application | Mobile Phone |
| Resolution | 1440×2560 |
| Composition | LCM , LTPS TFT-LCD |
| Brightness | |
| CR | 800:1 |
| Colors | 16.7M |
| Backlight | 5S3P WLED |
| Interface | MIPI |
| Manufacturer | TIANMA |
| Screen Size | 5.5 inch |
| Pixel Number | 1440(RGB)×2560 (Quad-HD) 537PPI |
| Active Area(mm) | 68.04 × 120.96 (H×V) |
| Luminance | - |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Good View at | Symmetry |
| Color Depth | 16.7M 70% NTSC |
| Mass | TBD |
| Refresh Rate | 70Hz |
| Signal Type | MIPI (2 ch, 4 data lanes) , 50 pins Connector |
| Voltage Supply | 1.8/5.5/-5.5V (Typ.)(IOVCC/VSP/VSN) |
| Max. Ratings | Storage Temp.: -30 ~ 70 °C Operating Temp.: -30 ~ 60 °C |
| Model Name | TL055BDXP03 |
| Screen Type | LCM , LTPS TFT-LCD |
| Arrangement | RGB Vertical Stripe |
| Outline(mm) | 70.94 × 128.29 × 1.46 (H×V×D) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Response | 8 (Typ.)(Tr+Td) ms |
| Work Mode | SFT, Normally Black, Transmissive |
| Used for | Mobile Phone |
| Touchscreen | Without |
