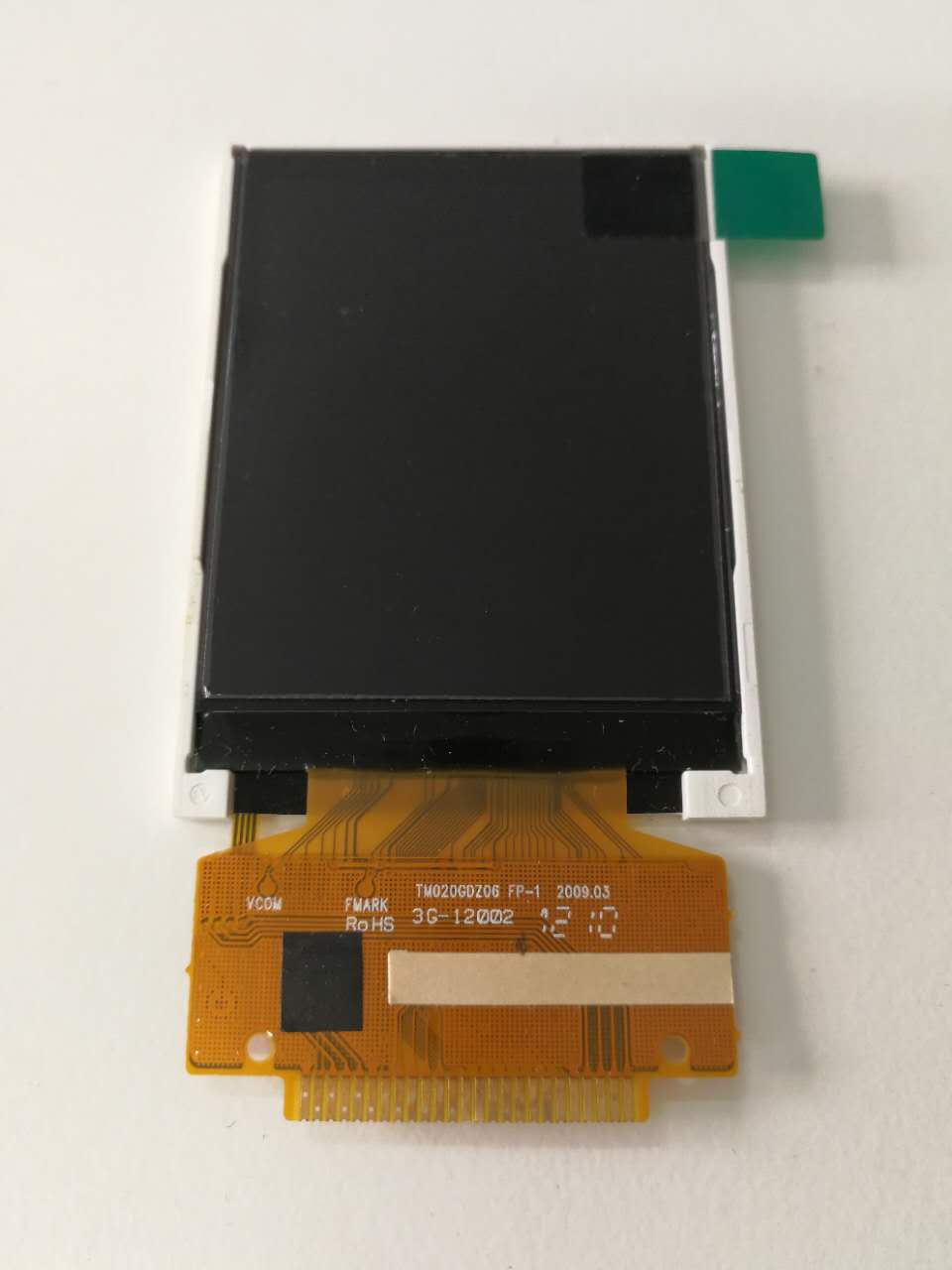

| PartNumber | TM020GDZ06 |
| Brand | TIANMA |
| Size | 2.0 |
| Application | Mobile Phone |
| Resolution | 176×220 |
| Composition | LCM, a-Si TFT-LCD |
| Brightness | |
| CR | |
| Colors | 262K |
| Backlight | WLED |
| Interface | |
| Manufacturer | TIANMA |
| Model Name | TM020GDZ06 |
| Screen Size | 2.0 inch |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 176(RGB)×220 (QCIF+) 141PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 31.68 × 39.6 (H×V) |
| Outline(mm) | - |
| Viewing Angle | 50/50/25/50 (Typ.)(CR≥10) |
| Response | 30/30 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 40% NTSC |
| Mass | - |
| Used for | Mobile Phone |
| Refresh Rate | - |
| Touchscreen | Without |
| Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
