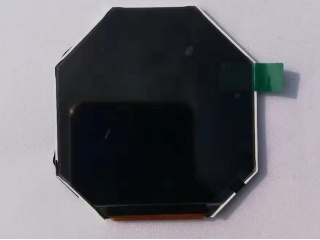

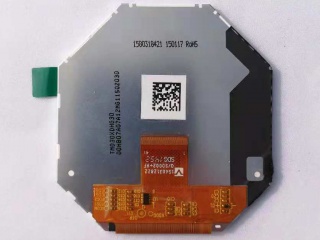

| PartNumber | TM030XDHG30 |
| Brand | TIANMA |
| Size | 2.1 |
| Application | Round Display Instru |
| Resolution | 480×480 |
| Composition | LCM , a-Si TFT-LCD |
| Brightness | |
| CR | 800:1 |
| Colors | 16.7M |
| Backlight | 4S1P WLED , No Driver |
| Interface | Parallel |
| Manufacturer | TIANMA |
| Model Name | TM030XDHG30 |
| Screen Size | 2.1 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 480(RGB)×480 228PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 53.28 × 53.28 (H×V) |
| Outline(mm) | 58.01 × 61.38 × 2.65 (H×V×D) |
| Bezel Area(mm) | - |
| Treatment | Hard coating |
| Luminance | 450 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | SFT, Normally Black, Transmissive |
| Color Depth | 16.7M 53% NTSC |
| Mass | 16.9g (Typ.) |
| Used for | Round Display Instruments & Meters |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | Parallel RGB (1 ch, 8-bit) + SPI , 41 pins FPC |
| Voltage Supply | (1.8/2.8)/2.8V (Typ.)(IOVCC/VCC) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
