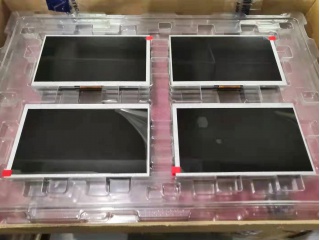

| PartNumber | TM050RDH03-00 |
| Brand | TIANMA |
| Size | 5.0 |
| Application | Industrial Portable Navigation MID UMPC MP3 PMP |
| Resolution | 800(RGB)×480, WVGA, 188PPI |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | 250 cd/m² (Typ.) |
| CR | 600:1 |
| Colors | 16.7M |
| Backlight | 7S2P |
| Interface | Parallel |
| Panel Brand | TIANMA |
| Panel Model | TM050RDH03-00 0 Compatible |
| Panel Size | 5.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 108(W)×64.8(H) mm |
| Bezel Opening | 111.1(W)×67.9(H) mm |
| Outline Size | 120.7(W)×75.8(H) ×3.1(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 12 o'clock |
| Response Time | 20 (Typ.)(Tr+Td) |
| Display Colors | 16.7M 50% NTSC |
| Lamp Type | 7S2P WLED , 20K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | TBD |
| Signal Interface | Parallel RGB (1 ch, 8-bit) , 40 pins FPC |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
