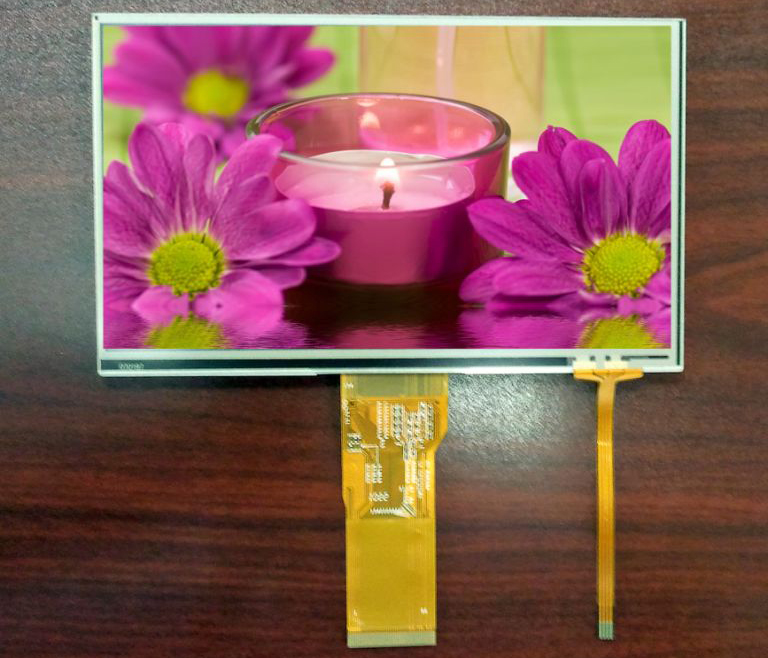

| PartNumber | TM070RBH10-00 |
| Brand | TIANMA |
| Size | 7.0 |
| Application | Industrial Digital P |
| Resolution | 800×480 |
| Composition | LCM , a-Si TFT-LCD |
| Brightness | |
| CR | 500:1 |
| Colors | 262K/16.2M |
| Backlight | 3S8P WLED , 20K hours , No Driver |
| Interface | Parallel |
| Manufacturer | TIANMA |
| Model Name | TM070RBH10-00 0 Compatible |
| Screen Size | 7.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 800(RGB)×480 (WVGA) 134PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 154.08 × 85.92 (H×V) |
| Outline(mm) | 164.9 × 100 × 7.1 (H×V×D) |
| Bezel Area(mm) | - |
| Treatment | Antiglare |
| Luminance | 280 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Good View at | 12 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K/16.2M 49% NTSC |
| Mass | TBD |
| Used for | Industrial Digital Photo Frame Portable DVD Player MP3 PMP |
| Refresh Rate | 60Hz |
| Touchscreen | 4-wire Resistive Touch |
| Signal Type | Parallel RGB (1 ch, 6/8-bit) , 50 pins FPC |
| Voltage Supply | 3.3/10.4/16/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
