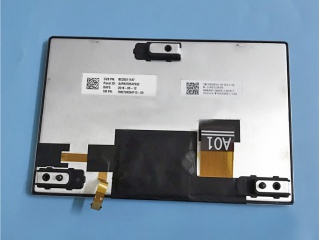

| PartNumber | TM070RDHP10-00 |
| Brand | TIANMA |
| Size | 7.0 |
| Application | Automotive Display |
| Resolution | 800×480 |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | Parallel |
| Model | TM070RDHP10-00 |
| Diagonal Size | 7.0 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel Format | 800(RGB)×480 [WVGA] 133PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 152.4(H)×91.44(V) mm |
| Outline Dim. | 165.1(H)×108.44(V) ×13(D) mm |
| Bezel Area | 155.4(H)×94.44(V) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 1000 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 35 (Max.)(Tr+Td) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Operating Mode | SFT, Normally Black, Transmissive |
| Support Color | 16.7M 71% NTSC |
| Light Source | WLED [8S2P] , 10K hours , W/O Driver |
| Weight | 180g (Max.) |
| Designed For | Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | Parallel RGB (1 ch, 6/8-bit) , 40 pins FPC |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -45 ~ 95 °C ; Vibration Level: 3.0G (29.4 m/s²) |
