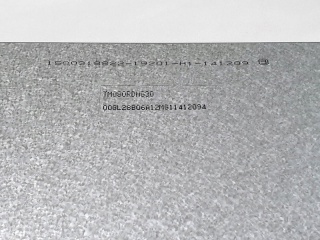

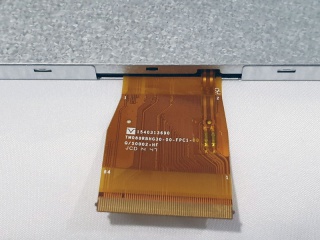

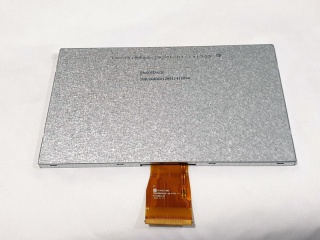

| PartNumber | TM080RDHG30 |
| Brand | TIANMA |
| Size | 8.0 |
| Application | Industrial |
| Resolution | 800(RGB)×480, WVGA, 116PPI |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | 450 cd/m² (Typ.) |
| CR | 500:1 |
| Colors | 262K/16.7M |
| Backlight | 3S12P |
| Interface | |
| Panel Brand | TIANMA |
| Panel Size | 8.0" |
| Display Area | 176.64(W)×99.36(H) mm |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) |
| Best View on | - |
| Display Colors | 262K/16.7M |
| Frequency | 60Hz |
| Weight | - |
| Panel Model | TM080RDHG30 |
| Panel Type | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| Bezel Opening | - |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 25 (Typ.)(Tr+Td) |
| Lamp Type | 3S12P WLED , 20K hours , Without Driver |
| Touch Screen | Without |
| CLAA080XA01BW | CPT | 8.0 | 1024×768 |
| DLC0800BIG-4 | Other | 8.0 | 800×600 |
| EJ080NA-05B | Innolux | 8.0 | 800×600 |
| TM080SDH01 | Tianma | 8.0 | 800×600 |
| TM080SV-04L01 | SANYO | 8.0 | 800×600 |
| TM080SV-22L03 | SANYO | 8.0 | 800×600 |
| TM080TDHG01 | Tianma | 8.0 | 1024×768 |
| TM080VDSP01 | Tianma | 8.0 | 1200×1920 |
| TM080VG-22L01 | SANYO | 8.0 | 640×480 |
| TM080XPH01 | Tianma | 8.0 | 1280×768 |
