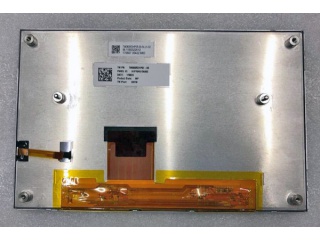

| PartNumber | TM080RDHP07 |
| Brand | TIANMA |
| Size | 8.0 |
| Application | Automotive Display |
| Resolution | 800×480 |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | Parallel |
| Diagonal Size | 8.0 inch |
| Pixel Format | 800(RGB)×480 [WVGA] 116PPI |
| Active Area | 174(H)×104.4(V) mm |
| Bezel Area | 177(H)×107.4(V) mm |
| Luminance | 600 cd/m² (Typ.) |
| View Direction | Symmetry |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Support Color | 16.7M 71% NTSC |
| Weight | TBD |
| Frame Rate | 60Hz |
| Interface Type | Parallel RGB (1 ch, 8-bit) , 60 pins FPC |
| Power Supply | 3.3/6.0/-6.0/17/-8V (Typ.)(VCC/VDDP/VDDN/VGH/VGL) |
| Environment | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 3.0G (29.4 m/s²) |
| Model | TM080RDHP07 |
| Type | a-Si TFT-LCD , LCM |
| Configuration | RGB Vertical Stripe |
| Outline Dim. | 190.4(H)×120.7(V) ×16.1(D) mm |
| Treatment | Antiglare |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Response Time | 50 (Max.)(Tr+Td) |
| Operating Mode | SFT, Normally Black, Transmissive |
| Light Source | WLED [8S2P] , 20K hours , W/O Driver |
| Designed For | Automotive Display |
| Touch Panel | Without |
