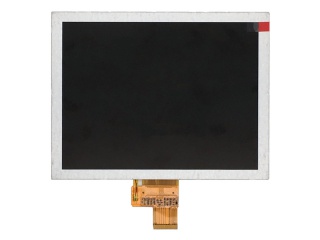

| PartNumber | TM080TDHG01-42 |
| Brand | TIANMA |
| Size | 8.0 |
| Application | Industrial |
| Resolution | 1024×768 |
| Composition | LCM , a-Si TFT-LCD |
| Brightness | |
| CR | 1000:1 |
| Colors | 262K/16.7M |
| Backlight | 3S9P WLED , 30K hours , No Driver |
| Interface | |
| Manufacturer | TIANMA |
| Screen Size | 8.0 inch |
| Pixel Number | 1024(RGB)×768 (XGA) 160PPI |
| Active Area(mm) | 162.048 × 121.536 (H×V) |
| Bezel Area(mm) | 164.65 × 124.14 (H×V) |
| Luminance | 400 (Typ.)(cd/m²) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Good View at | 12 o'clock |
| Color Depth | 262K/16.7M 50% NTSC |
| Mass | 189g |
| Refresh Rate | 60Hz |
| Model Name | TM080TDHG01-42 |
| Screen Type | LCM , a-Si TFT-LCD |
| Arrangement | RGB Vertical Stripe |
| Outline(mm) | 183 × 141 × 3.7 (H×V×D) |
| Treatment | Clear |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Work Mode | TN, Normally White, Transmissive |
| Response | 20 (Typ.)(Tr+Td) ms |
| Used for | Industrial |
| Touchscreen | Without |
