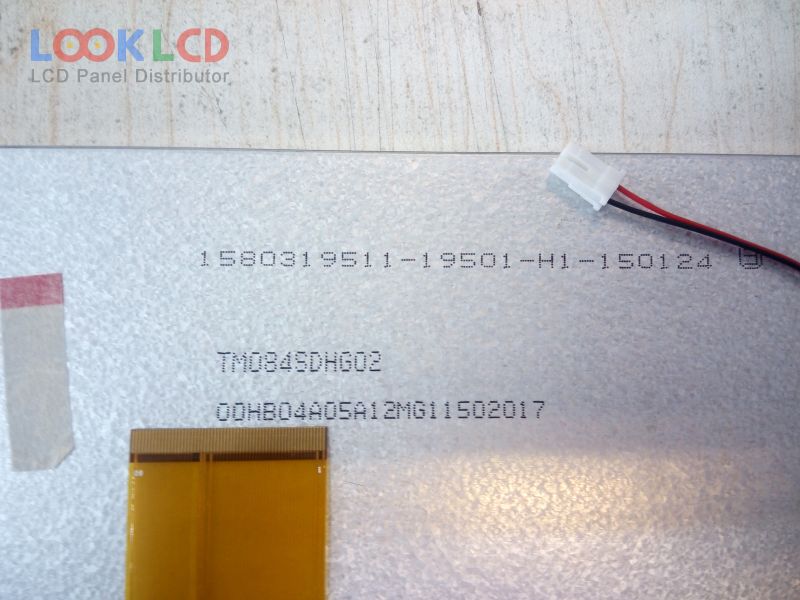

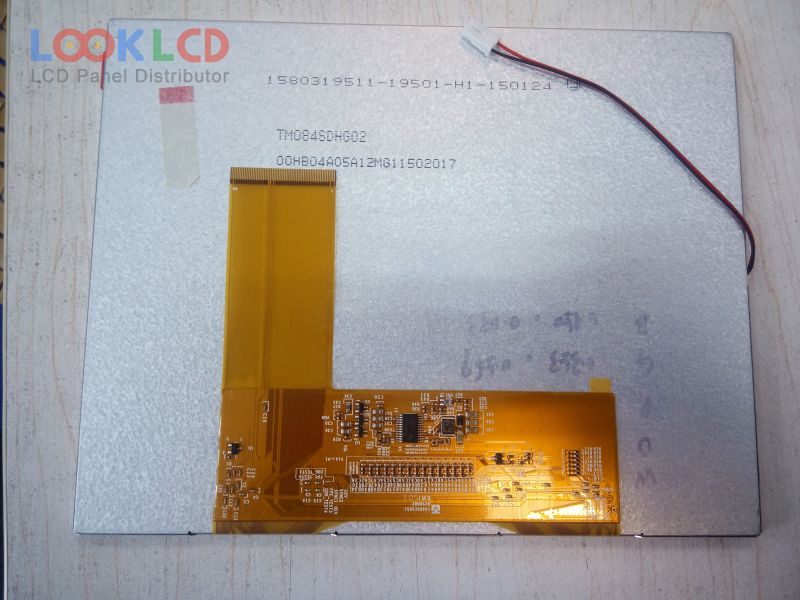

| PartNumber | TM084SDHG02 |
| Brand | Tianma |
| Size | 8.4 |
| Application | IA |
| Resolution | 800(RGB)×600 , SVGA |
| Composition | LCM |
| Brightness | 330 cd/m² (Typ.) |
| CR | 500:1 |
| Colors | 262K/16.7M |
| Backlight | WLED |
| Interface | TTL |
| Panel Brand | TIANMA |
| Panel Model | TM084SDHG02 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 8.4 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 170.4×127.8 mm |
| Outline | 189.75×149.4 mm |
| Surface | Antiglare |
| Contrast Ratio | 500:1 (Typ.) |
| Display Colors | 262K/16.7M (6-bit / 6-bit + Dithering), CIE193150% |
| Response Time | 20 (Typ.)(Tr+Td) |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 3S7PWLEDWithout Driver |
| Signal Interface | Parallel RGB (1 ch, 6/8-bit), 60 pins |
| Input Voltage | 3.3V (Typ.) |
