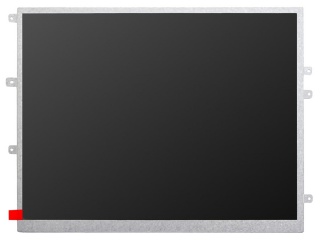

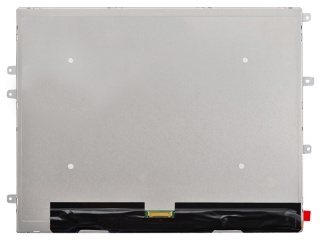

| PartNumber | TM097TDHG04-02 |
| Brand | TIANMA |
| Size | 9.7 |
| Application | Pad & Tablet Industrial |
| Resolution | 1024(RGB)×768, XGA, 132PPI |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | 350 cd/m² (Typ.) |
| CR | 500:1 |
| Colors | 262K |
| Backlight | 6S6P |
| Interface | LVDS |
| Panel Brand | TIANMA |
| Panel Size | 9.7" |
| Display Area | 196.608(W)×147.456(H) mm |
| Outline Size | 210.2(W)×166.3(H) ×5.85(D) mm |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) |
| Best View on | 12 o'clock |
| Display Colors | 262K 50% NTSC |
| Frequency | 60Hz |
| Panel Weight | 200g (Typ.) |
| Signal Interface | LVDS (1 ch, 6-bit) , 30 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| Panel Model | TM097TDHG04-02 |
| Panel Type | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| Bezel Opening | 200.91(W)×152.27(H) mm |
| Surface | Clear |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 20/25 (Typ./Max.)(Tr+Td) |
| Lamp Type | 6S6P WLED , 30K hours , Without Driver |
| Touch Screen | Without |
