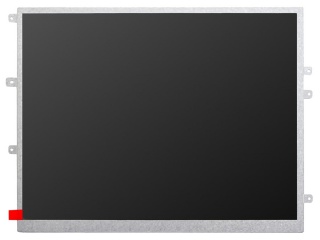

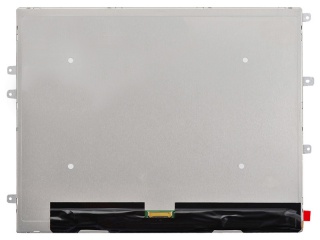

| PartNumber | TM097TDHG04-62 |
| Brand | TIANMA |
| Size | 9.7 |
| Application | Pad & Tablet Industr |
| Resolution | 1024×768 |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | |
| CR | 500:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | LVDS |
| Diagonal Size | 9.7 inch |
| Pixel Format | 1024(RGB)×768 [XGA] 132PPI |
| Active Area | 196.608(H)×147.456(V) mm |
| Bezel Area | 200.91(H)×152.27(V) mm |
| Luminance | 350 cd/m² (Typ.) |
| View Direction | 12 o'clock |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) |
| Support Color | 262K 50% NTSC |
| Weight | 200g (Typ.) |
| Frame Rate | 60Hz |
| Interface Type | LVDS (1 ch, 6-bit) , 30 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| Model | TM097TDHG04-62 |
| Type | a-Si TFT-LCD , LCM |
| Configuration | RGB Vertical Stripe |
| Outline Dim. | 210.2(H)×166.3(V) ×6.5(D) mm |
| Treatment | Clear |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Response Time | 20/25 (Typ./Max.)(Tr+Td) |
| Operating Mode | TN, Normally White, Transmissive |
| Light Source | WLED [6S6P] , 30K hours , W/O Driver |
| Designed For | Pad & Tablet Industrial |
| Touch Panel | Without |
