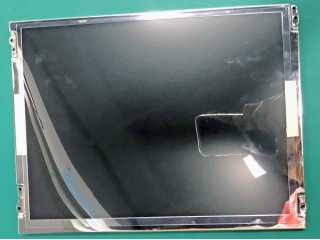

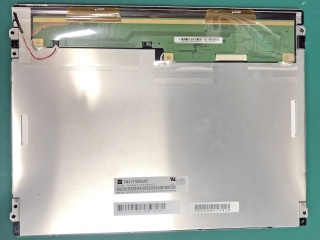

| PartNumber | TM121SDSG05 |
| Brand | TIANMA |
| Size | 12.1 |
| Application | Industrial |
| Resolution | 800×600 |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | |
| CR | 700:1 |
| Colors | 262K/16.7M |
| Backlight | WLED |
| Interface | |
| Diagonal Size | 12.1 inch |
| Pixel Format | 800(RGB)×600 [SVGA] 82PPI |
| Active Area | 246(H)×184.5(V) mm |
| Luminance | 350 cd/m² (Typ.) |
| View Direction | - |
| Viewing Angle | 80/80/65/75 (Typ.)(CR≥10) |
| Support Color | 262K/16.7M 55% NTSC |
| Weight | 540g (Typ.) |
| Frame Rate | 60Hz |
| Model | TM121SDSG05 |
| Type | a-Si TFT-LCD , LCM |
| Configuration | RGB Vertical Stripe |
| Outline Dim. | 279(H)×209(V) ×9(D) mm |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| Response Time | 35 (Typ.)(Tr+Td) |
| Operating Mode | TN, Normally White, Transmissive |
| Light Source | WLED , 30K hours , With LED Driver |
| Designed For | Industrial |
| Touch Panel | Without |
| AA121TD01-DE3 | Mitsubishi | 12.1 | 1280×800 |
| LQ121S1DG42 | SHARP | 12.1 | 800×600 |
| LT121DEE3P00 | TOSHIBA | 12.1 | 1024×768 |
| LT121SL-105 | Samsung | 12.1 | 800×600 |
| TM121SDS01 | Tianma | 12.1 | 800×600 |
| TM121SV-02L01 | SANYO | 12.1 | 800×600 |
| TM121SV-02L11 | SANYO | 12.1 | 800×600 |
| TM121SV-A01 | SANYO | 12.1 | 800×600 |
| TM121XG-02L01 | SANYO | 12.1 | 1024×768 |
| TM121XG-02L10 | SANYO | 12.1 | 1024×768 |
