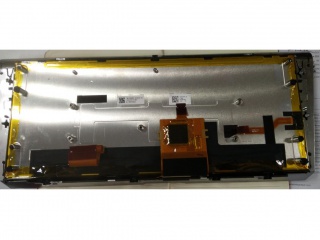

| PartNumber | TM123XDHP01 |
| Brand | TIANMA |
| Size | 12.3 |
| Application | Industrial Automotiv |
| Resolution | 1920×720 |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | |
| Diagonal Size | 12.3 inch |
| Pixel Format | 1920(RGB)×720 166PPI |
| Active Area | 292.32(H)×109.62(V) mm |
| Luminance | - |
| View Direction | Symmetry |
| Viewing Angle | - |
| Support Color | 16.7M sRGB |
| Weight | - |
| Frame Rate | 60Hz |
| Environment | Operating Temperature: -40 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C |
| Model | TM123XDHP01 |
| Type | a-Si TFT-LCD , LCM |
| Configuration | RGB Vertical Stripe |
| Outline Dim. | - |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Response Time | 25 (Typ.)(Tr+Td) |
| Operating Mode | SFT, Normally Black, Transmissive |
| Light Source | WLED |
| Designed For | Industrial Automotive Display |
| Touch Panel | Without |
