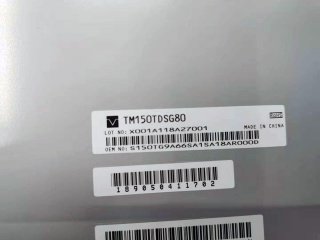

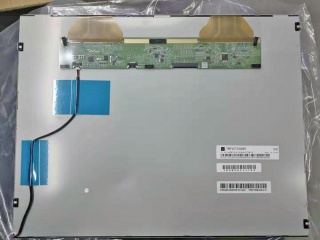

| PartNumber | TM150TDSG80 |
| Brand | TIANMA |
| Size | 15.0 |
| Application | Industrial |
| Resolution | 1024(RGB)×768, XGA, 85PPI |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | 350 cd/m² (Typ.) |
| CR | 800:1 |
| Colors | 262K/16.7M |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | TIANMA |
| Panel Model | TM150TDSG80 |
| Panel Size | 15.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 304.128(W)×228.096(H) mm |
| Bezel Opening | 307.4(W)×231.3(H) mm |
| Outline Size | 326.5(W)×253.5(H) ×10(D) mm |
| Surface | Antiglare |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 12 o'clock |
| Response Time | 8 (Typ.)(Tr+Td) |
| Display Colors | 262K/16.7M 60% NTSC |
| Lamp Type | WLED , 30K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | TBD |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -10 ~ 65 °C ; Storage Temp.: -20 ~ 65 °C |
