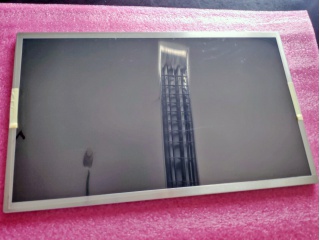

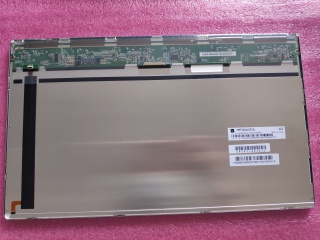

| PartNumber | TM156VDSG16 |
| Brand | TIANMA |
| Size | 15.6 |
| Application | Industrial |
| Resolution | 1920×1080 |
| Composition | LCM , a-Si TFT-LCD |
| Brightness | |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | WLED , 50K hours , With LED Driver |
| Interface | |
| Manufacturer | TIANMA |
| Screen Size | 15.6 inch |
| Pixel Number | 1920(RGB)×1080 (FHD) 141PPI |
| Active Area(mm) | 344.16 × 193.59 (H×V) |
| Bezel Area(mm) | 347.55 × 196.75 (H×V) |
| Luminance | 400 (Typ.)(cd/m²) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Good View at | Symmetry |
| Color Depth | 16.7M 72% NTSC |
| Mass | 610g (Typ.) |
| Refresh Rate | 60Hz |
| Model Name | TM156VDSG16 |
| Screen Type | LCM , a-Si TFT-LCD |
| Arrangement | RGB Vertical Stripe |
| Outline(mm) | 363.8 × 215.9 × 6.8 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Work Mode | SFT, Normally Black, Transmissive |
| Response | 25 (Typ.)(Tr+Td) ms |
| Used for | Industrial |
| Touchscreen | Without |
