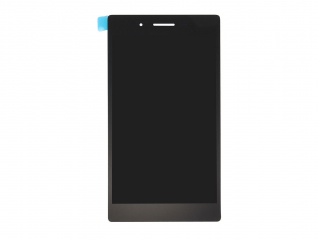

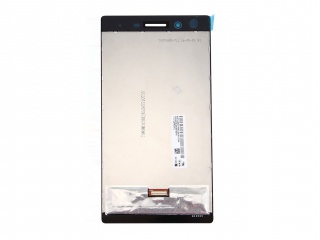

| PartNumber | TV070WSM-TL1 |
| Brand | BOE |
| Size | 7.0 |
| Application | Pad & Tablet |
| Resolution | 600×1024 |
| Composition | Assembly , a-Si TF |
| Brightness | |
| CR | 800:1 |
| Colors | 16.7M |
| Backlight | 6S3P WLED , No Driver |
| Interface | MIPI |
| Manufacturer | BOE |
| Model Name | TV070WSM-TL1 |
| Screen Size | 7.0 inch |
| Screen Type | Assembly , a-Si TFT-LCD |
| Pixel Number | 600(RGB)×1024 (WSVGA) 170PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 89.28 × 152.37 (H×V) |
| Outline(mm) | 97 × 188.26 (H×V×D) |
| Bezel Area(mm) | - |
| Treatment | Hard coating |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 30 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | - |
| Color Depth | 16.7M 50% NTSC |
| Mass | 125g (Max.) |
| Used for | Pad & Tablet |
| Refresh Rate | 60Hz |
| Touchscreen | On-Cell Touch |
| Signal Type | MIPI (4 data lanes) , 39 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 70 °C Operating Temp.: -20 ~ 60 °C |
