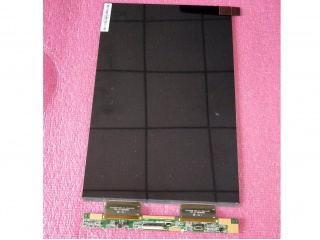

| PartNumber | TV106WAB-NS0 |
| Brand | BOE |
| Size | 10.6 |
| Application | Pad & Tablet |
| Resolution | 1280×1920 |
| Composition | a-Si TFT-LCD, CELL |
| Brightness | |
| CR | 900:1 |
| Colors | 16.7M |
| Backlight | No |
| Interface | |
| Model | TV106WAB-NS0 |
| Diagonal Size | 10.6 inch |
| Type | a-Si TFT-LCD, CELL |
| Pixel Format | 1280(RGB)×1920 218PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 148.992(H)×223.488(V) mm |
| Outline Dim. | 153.392(H)×232.688(V) ×0.79(D) mm |
| Bezel Area | - |
| Treatment | Hard coating (3H) |
| Luminance | 0 cd/m² |
| Contrast Ratio | 900:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | ADS, Normally Black, Transmissive |
| Plate Thickness | 0.25+0.25 mm |
| Transmittance | - |
| Support Color | 16.7M 71% NTSC |
| Light Source | No B/L , W/O Driver |
| Weight | 62.0g (Max.) |
| Designed For | Pad & Tablet |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
