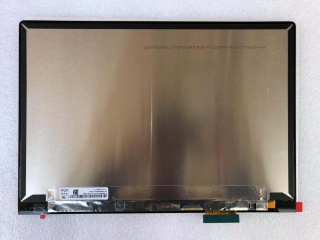

| PartNumber | TV122WXM-AL0 |
| Brand | BOE |
| Size | 12.2 |
| Application | Laptop |
| Resolution | 1280×800 |
| Composition | LCM , a-Si TFT-LCD |
| Brightness | |
| CR | 900:1 |
| Colors | 16.7M |
| Backlight | WLED , No Driver |
| Interface | eDP |
| Manufacturer | BOE |
| Model Name | TV122WXM-AL0 |
| Screen Size | 12.2 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1280(RGB)×800 (WXGA) 123PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 262.565 × 164.16 (H×V) |
| Outline(mm) | 278.46 × 193.26 × 3.4 (H×V×D) |
| Bezel Area(mm) | - |
| Treatment | Hard coating |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 900 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 30 (Typ.)(Tr+Td); 45 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive |
| Color Depth | 16.7M 50% NTSC |
| Outline Shape | - |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (1 Lane) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
