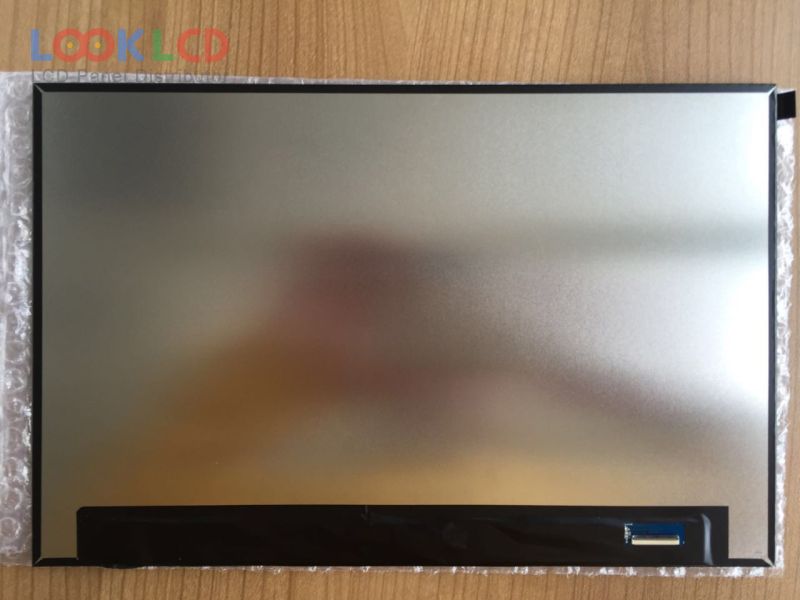

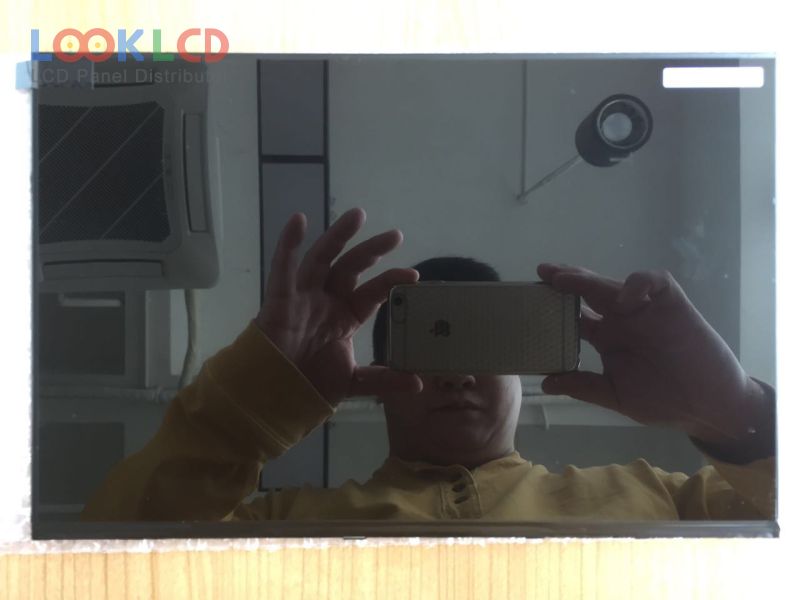

| PartNumber | TV122WXM-NW0 |
| Brand | BOE |
| Size | 12.2 |
| Application | NBPC |
| Resolution | 1280(RGB)×800 , WXGA |
| Composition | LCM |
| Brightness | 300 cd/m² (Typ.) |
| CR | 900:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | eDP |
| Panel Brand | BOE |
| Panel Model | TV122WXM-NW0 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 12.2 inch |
| Display Mode | ADS, Normally Black, Transmissive |
| Active Area | 262.565×164.16 mm |
| Outline | 271.06×176.42×2.86 mm |
| Surface | |
| Contrast Ratio | 900:1 (Typ.) |
| Display Colors | 16.7M (8-bit), CIE193150% |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLEDWithout Driver |
| Signal Interface | eDP (2 Lanes), 39 pins |
| Input Voltage | 3.3V (Typ.) |
