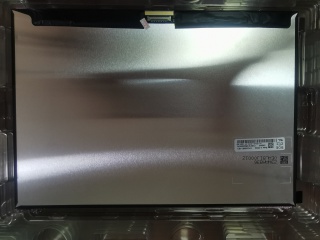

| PartNumber | TV123WAM-ND1 |
| Brand | BOE |
| Size | 12.3 |
| Application | Pad & Tablet |
| Resolution | 1920(RGB)×1280, 188PPI |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | - |
| CR | 1200:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | |
| Panel Brand | BOE |
| Panel Size | 12.3" |
| Display Area | 259.2(W)×172.8(H) mm |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 16.7M |
| Frequency | 60Hz |
| Weight | - |
| Panel Model | TV123WAM-ND1 |
| Panel Type | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| Bezel Opening | - |
| Contrast Ratio | 1200:1 (Typ.) (TM) |
| Display Mode | ADS, Normally Black, Transmissive |
| Response Time | 25 (Typ.)(Tr+Td) |
| Lamp Type | WLED |
| Touch Screen | Without |
