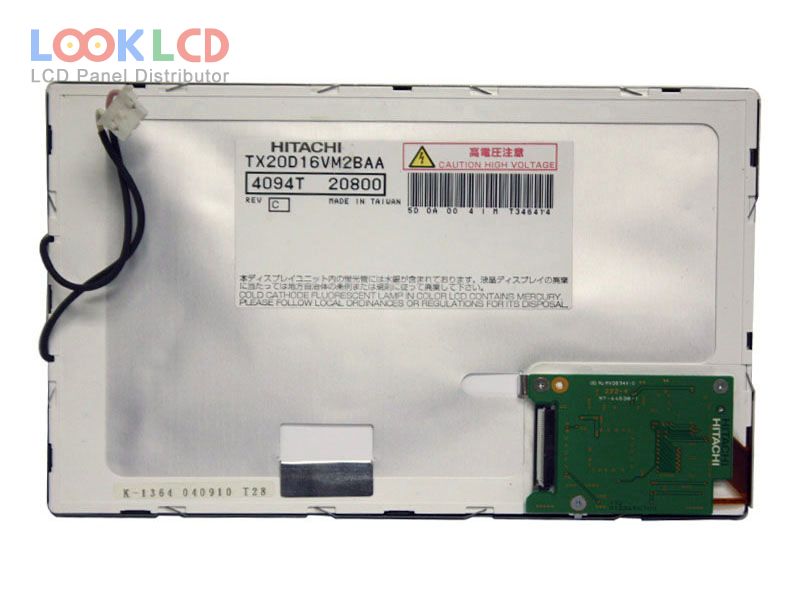

| PartNumber | TX20D16VM2BAA |
| Brand | KOE |
| Size | 8.0 |
| Application | IA |
| Resolution | 800(RGB)×480 , WVGA |
| Composition | LCM |
| Brightness | 350 cd/m² (Typ.) |
| CR | 200:1 |
| Colors | 262K |
| Backlight | CCFL |
| Interface | TTL |
| Panel Brand | HITACHI |
| Panel Model | TX20D16VM2BAA |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 8.0 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 174×104.4 mm |
| Outline | 189×120 mm |
| Surface | Antiglare |
| Contrast Ratio | 200:1 (Typ.) |
| Display Colors | 262K (6-bit), CIE193160% |
| Response Time | 20/10 (Typ.)(Tr/Td) |
| Viewing Angle | 50/50/50/50 (Min.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 1 pcsCCFLWithout Driver |
| Signal Interface | CMOS (1 ch, 6-bit), 40 pins |
| Input Voltage | 3.3V (Typ.) |
