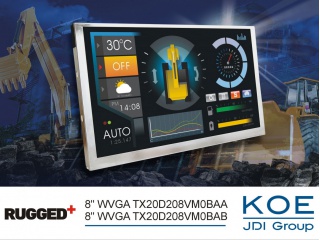

| PartNumber | TX20D208VM0BAA |
| Brand | HITACHI |
| Size | 8.0 |
| Application | Industrial Outdoor High Brightness Automotive Display |
| Resolution | 800(RGB)×480, WVGA, 116PPI |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | 1200 cd/m² (Typ.) |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | HITACHI |
| Panel Model | TX20D208VM0BAA |
| Panel Size | 8.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 174(W)×104.4(H) mm |
| Bezel Opening | 177.4(W)×107.8(H) mm |
| Outline Size | 190.8(W)×120.5(H) ×16.2(D) mm |
| Surface | - |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | IPS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 30 (Max.)(Tr+Td) |
| Display Colors | 16.7M 70% NTSC |
| Lamp Type | WLED , 100K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 275g (Typ.) |
| Signal Interface | LVDS (1 ch, 8-bit) , 20 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -40 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C |
