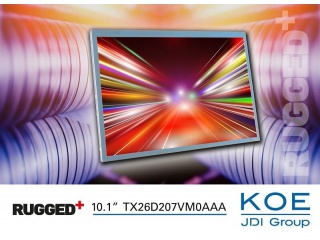

| PartNumber | TX26D207VM0AAA |
| Brand | KOE |
| Size | 10.1 |
| Application | Industrial Outdoor H |
| Resolution | 1280×800 |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | |
| CR | 1500:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | LVDS |
| Diagonal Size | 10.1 inch |
| Pixel Format | 1280(RGB)×800 [WXGA] 149PPI |
| Active Area | 217.344(H)×135.84(V) mm |
| Bezel Area | 220.344(H)×138.838(V) mm |
| Luminance | 1000 cd/m² (Typ.) |
| View Direction | Symmetry |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Support Color | 16.7M 65% NTSC |
| Weight | 340g (Typ.) |
| Frame Rate | 60Hz |
| Interface Type | LVDS (1 ch, 8-bit) , 20 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C ; Vibration Level: 5.0G (49.0 m/s²) |
| Model | TX26D207VM0AAA |
| Type | a-Si TFT-LCD , LCM |
| Configuration | RGB Vertical Stripe |
| Outline Dim. | 231(H)×153.5(V) ×11.07(D) mm |
| Treatment | - |
| Contrast Ratio | 1500:1 (Typ.) (TM) |
| Response Time | 25 (Max.)(Tr+Tf) |
| Operating Mode | IPS, Normally Black, Transmissive |
| Light Source | WLED , 70K hours , With LED Driver |
| Designed For | Industrial Outdoor High Brightness Automotive Display |
| Touch Panel | Without |
| AM-19201200B1TZQW-T00 | AMPIRE | 10.1 | 1920×1200 |
| HSD100IFW1-F03 | HannStar | 10.1 | 1024×600 |
| HSD101PWW1-G10 | HannStar | 10.1 | 1280×800 |
| LP101WH1-TLB1 | LG Display | 10.1 | 1366×768 |
| LP101WH1-TLB2 | LG Display | 10.1 | 1366×768 |
| LP101WX1-SLP2 | LG Display | 10.1 | 1280×800 |
| LTN101NT02-B01 | Samsung | 10.1 | 1024×600 |
| N101ICG-L21 Rev.B1 | Innolux | 10.1 | 1280×800 |
| TX26D202VM0BAA | KOE | 10.1 | 1920×1200 |
| TX26D203VM2BAA | KOE | 10.4 | 1024×768 |
