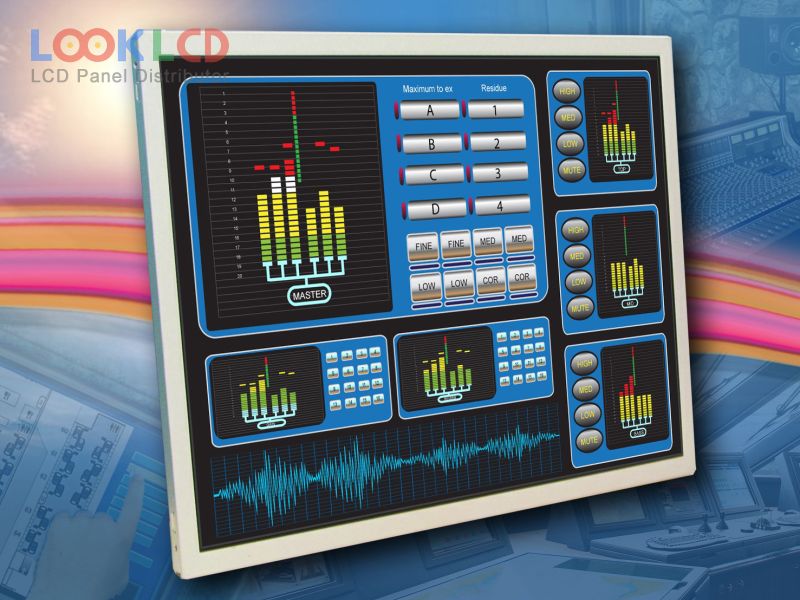

| PartNumber | TX31D37VM0CAA |
| Brand | KOE |
| Size | 12.1 |
| Application | IA |
| Resolution | 800(RGB)×600 , SVGA |
| Composition | LCM |
| Brightness | 600 cd/m² (Typ.) |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | HITACHI |
| Panel Model | TX31D37VM0CAA |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 12.1 inch |
| Display Mode | IPS Pro, Normally Black, Transmissive |
| Active Area | 246×184.5 mm |
| Outline | 280×210×13.08 mm |
| Surface | |
| Contrast Ratio | 1000:1 (Typ.) |
| Display Colors | 16.7M (8-bit) |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 3S8PWLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 8-bit), 20 pins |
| Input Voltage | 3.3V (Typ.) |
