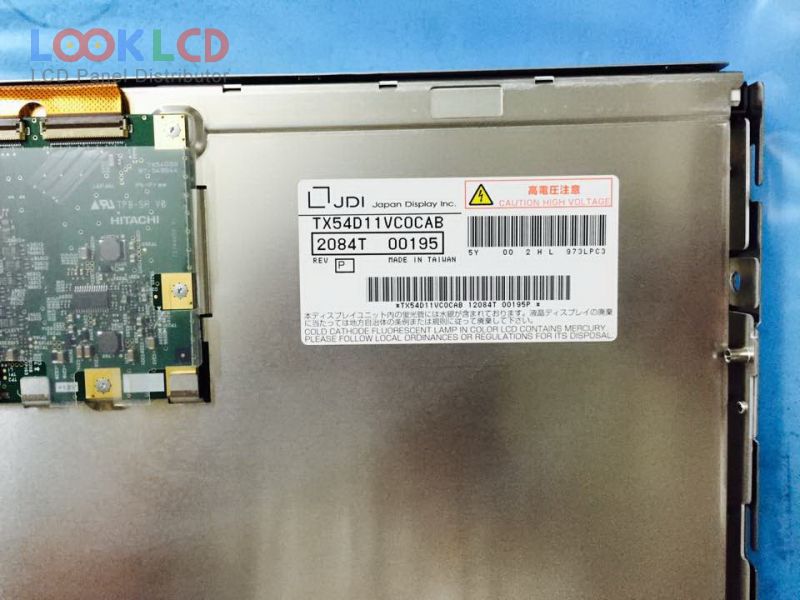

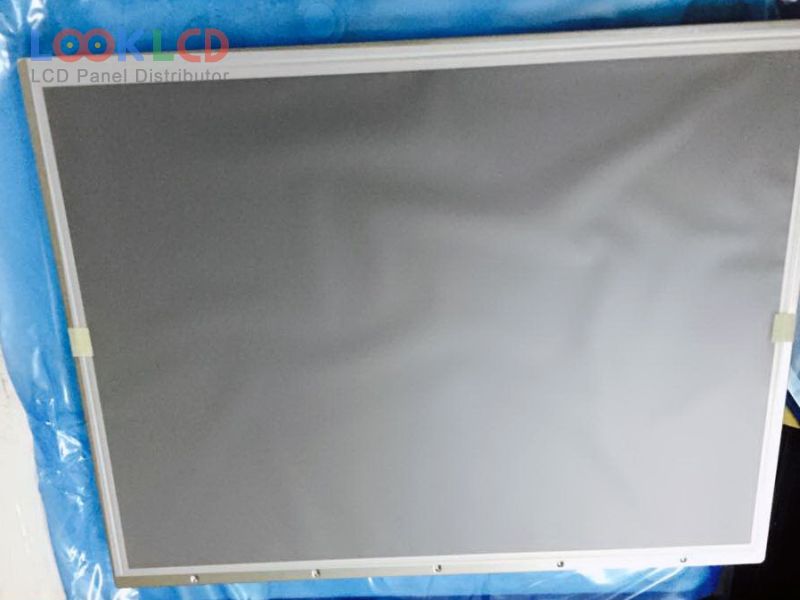

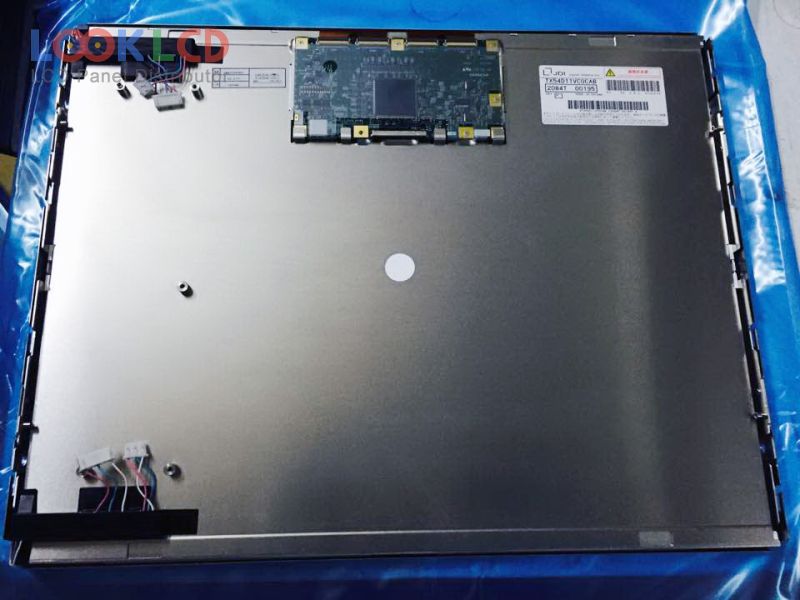

| PartNumber | TX54D11VC0CAB |
| Brand | JDI |
| Size | 21.3 |
| Application | IA |
| Resolution | 1600(RGB)×1200 , UXGA |
| Composition | LCM |
| Brightness | 250 cd/m² (Typ.) |
| CR | 400:1 |
| Colors | 16.7M |
| Backlight | CCFL |
| Interface | LVDS |
| Panel Brand | JDI |
| Panel Model | TX54D11VC0CAB |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 21.3 inch |
| Display Mode | S-IPS, Normally Black, Transmissive |
| Active Area | 432×324 mm |
| Outline | 460.6×362 mm |
| Surface | |
| Contrast Ratio | 400:1 (Typ.) |
| Display Colors | 16.7M (8-bit) |
| Response Time | |
| Viewing Angle | |
| Lamp Type | 6 pcsCCFL |
| Signal Interface | LVDS (2 ch, 8-bit) |
| Input Voltage | 12.0V (Typ.) |
| RoHS: |
