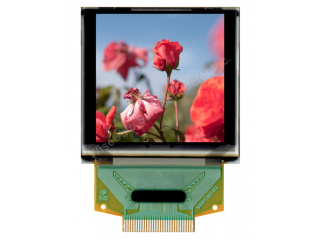

| PartNumber | UG-2828GDEDF15 |
| Brand | Univision |
| Size | 1.5 |
| Application | Mobile Phone Handhel |
| Resolution | 128×128 |
| Composition | PM-OLED, OLED |
| Brightness | |
| CR | 2000:1 |
| Colors | 262K |
| Backlight | self |
| Interface | 8-bit |
| Model | UG-2828GDEDF15 |
| Diagonal Size | 1.5 inch |
| Type | PM-OLED, OLED |
| Pixel Format | 128(RGB)×128 121PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 26.855(H)×26.864(V) mm |
| Outline Dim. | 33.8(H)×34(V) ×1.7(D) mm |
| Bezel Area | 28.855(H)×28.864(V) mm |
| Treatment | - |
| Luminance | 90 cd/m² (Typ.) |
| Contrast Ratio | 2000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | - |
| Viewing Angle | 80/80/80/80 (Min.) |
| Operating Mode | - |
| Support Color | 262K |
| Light Source | self , 20K hours |
| Weight | 3.80g (Typ.) |
| Designed For | Mobile Phone Handheld & PDA |
| Frame Rate | - |
| Touch Panel | Without |
| D-IC Detail | COF Built-in SSD1351 |
| Interface Type | 8-bit 6800/8080 parallel, 3/4-wire SPI , 30 pins FPC |
| Power Supply | 2.8/2.5/1.8/13V (Typ.)(VCI/VDD/VDDIO/VCC) |
| Environment | Operating Temperature: -30 ~ 70 °C ; Storage Temperature: -40 ~ 80 °C |
