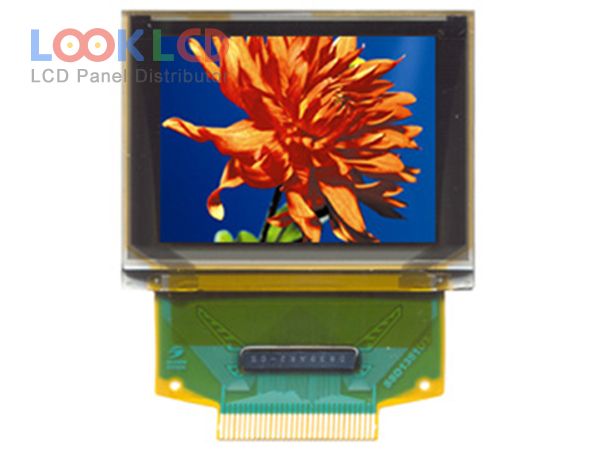

| PartNumber | UG-2896GDEAF11 |
| Brand | WiseChip |
| Size | 1.3 |
| Application | IA |
| Resolution | 128(RGB)×96 |
| Composition | OLED |
| Brightness | 100 cd/m² (Typ.) |
| CR | 2000:1 |
| Colors | 262K |
| Backlight | self |
| Interface | CPU/SPI |
| Panel Brand | Univision |
| Panel Model | UG-2896GDEAF11 |
| Panel Type | PM-OLED , OLED |
| Panel Size | 1.3 inch |
| Active Area | 25.708×19.28 mm |
| Outline | 33.7×26.9×1.7 mm |
| Surface | |
| Contrast Ratio | 2000 : 1 (Typ.) |
| Display Colors | 262K (6-bit) |
| Viewing Angle | 80/80/80/80 (Min.)(L/R/U/D) |
| Driver IC | COF Built-in SSD1351 |
| Signal Interface | 8-bit 6800/8080 parallel, 3/4-wire SPI, 30 pins |
| Input Voltage | 2.8/12V (Typ.)(VCI/VCC) |
