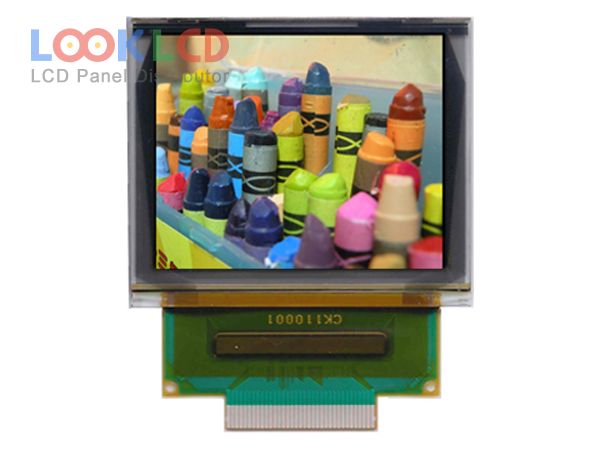

| PartNumber | UG-6028GDEBF02 |
| Brand | WiseChip |
| Size | 1.7 |
| Application | IA |
| Resolution | 160(RGB)×128 |
| Composition | OLED |
| Brightness | 75 cd/m² (Typ.) |
| CR | 2000:1 |
| Colors | 262K |
| Backlight | self |
| Interface | CPU/RGB/SPI |
| Panel Brand | WiseChip |
| Panel Model | UG-6028GDEBF02 |
| Panel Type | PM-OLED , OLED |
| Panel Size | 1.7 inch |
| Active Area | 33.575×26.864 mm |
| Outline | 39.9×34×1.7 mm |
| Surface | |
| Contrast Ratio | 2000 : 1 (Typ.) |
| Display Colors | 262K (6-bit) |
| Viewing Angle | 80/80/80/80 (Min.)(L/R/U/D) |
| Driver IC | COF Built-in SEPS525 |
| Signal Interface | 8/9-bit 8080 parallel, 6-bit RGB, 4-wire SPI, 35 pins |
| Input Voltage | 2.8/2.8/14.0V (VDD/VDDIO/VDDH) |
