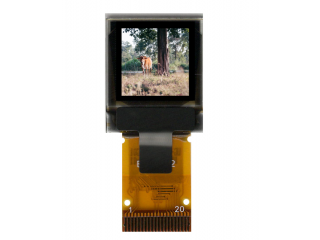

| PartNumber | UG-6464TDDBG01 |
| Brand | WiseChip |
| Size | 0.60 |
| Application | |
| Resolution | 64(RGB)×64, 151PPI |
| Composition | PM-OLED , OLED |
| Brightness | 200 cd/m² (Typ.) |
| CR | 10000:1 |
| Colors | 65K |
| Backlight | self |
| Interface | 4-wire |
| Panel Brand | WiseChip |
| Panel Size | 0.60" |
| Display Area | 10.73(W)×10.73(H) mm |
| Outline Size | 15(W)×17.5(H) ×1.3(D) mm |
| Viewing Angle | - |
| Best View on | Symmetry |
| Display Colors | 65K 60% NTSC |
| Frequency | - |
| Driver IC | COG Built-in SSD1357 |
| Panel Weight | 0.66±0.06g |
| Signal Interface | 4-wire SPI , 20 pins FPC |
| Input Voltage | 3.0/12.0V (Typ.)(VDD/VCC) |
| Environment | Operating Temp.: -40 ~ 70 °C ; Storage Temp.: -40 ~ 85 °C |
| Panel Model | UG-6464TDDBG01 |
| Panel Type | PM-OLED , OLED |
| Pixel Format | RGB Vertical Stripe |
| Bezel Opening | 11.73(W)×11.73(H) mm |
| Surface | - |
| Contrast Ratio | 10000:1 (Typ.) (TM) |
| Display Mode | - |
| Response Time | - |
| Lamp Type | self , 10K hours |
| Touch Screen | Without |
