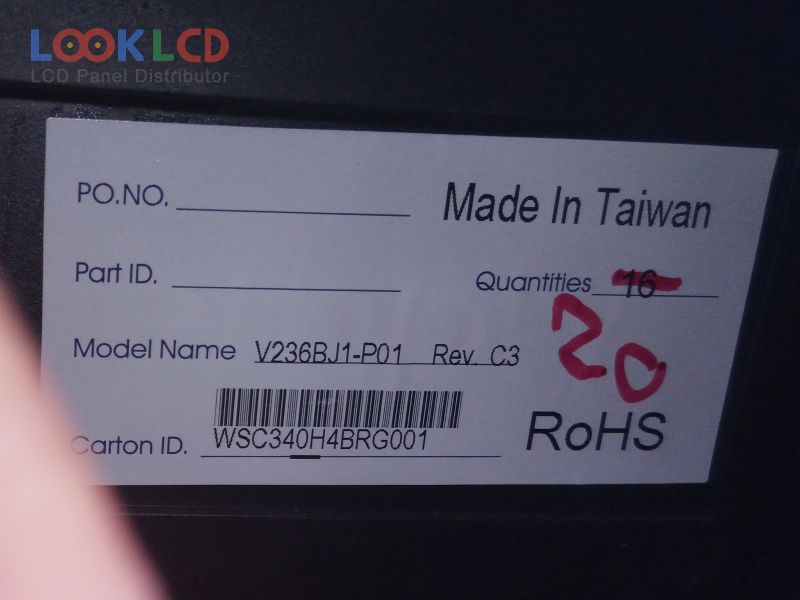

V236BJ1-P01 Rev.C3

V236BJ1-P01 Rev.C3
V236BJ1-P01 Rev.C3 thumb
Brand
Innolux
Size
23.6
Application
LCTV
Resolution
1366×768
Composition
CELL
Brightness
0
CR
3000:1
Colors
16.7M
Backlight
No B/L
Interface
LVDS
In Stock
6347
Specifications
PartNumber V236BJ1-P01 Rev.C3
BrandInnolux
Size23.6
ApplicationLCTV
Resolution1366(RGB)×768 , WXGA
CompositionCELL
Brightness0
CR3000:1
Colors16.7M
BacklightNo B/L
InterfaceLVDS
Panel BrandCHIMEI INNOLUX
Panel ModelV236BJ1-P01 Rev.C3
Panel Type a-Si TFT-LCD , CELL
Panel Size23.6 inch
Display ModeMVA, Normally Black, Transmissive
Active Area521.471×293.184 mm
Outline535.06×307.34 mm
SurfaceAntiglare (Haze 1%), Hard coating (3H)
Glass Depth0.50+0.50 mm
Transmissivity5.6% (Typ.)(with Polarizer)
Contrast Ratio3000:1 (Typ.)
Display Colors16.7M (8-bit), CIE193172%
Response Time8.5 (Typ.)(G to G)
Viewing Angle88/88/88/88 (Typ.)(CR≥20)(L/R/U/D)
Frequency60Hz
Signal InterfaceLVDS (1 ch, 8-bit), 30 pins
Input Voltage12.0V (Typ.)
