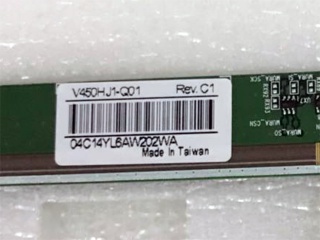

| PartNumber | V450HJ1-Q01 Rev.C1 |
| Brand | Innolux |
| Size | 44.5 |
| Application | TV Sets |
| Resolution | 1920(RGB)×1080, FHD, 49PPI |
| Composition | a-Si TFT-LCD, CELL |
| Brightness | 0 cd/m² |
| CR | 4800:1 |
| Colors | 16.7M |
| Backlight | No |
| Interface | LVDS |
| Panel Brand | Innolux |
| Panel Model | V450HJ1-Q01 Rev.C1 |
| Panel Size | 44.5" |
| Panel Type | a-Si TFT-LCD, CELL |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 989.568(W)×546.264(H) mm |
| Bezel Opening | - |
| Outline Size | 999.568(W)×556.364(H) ×1.3(D) mm |
| Surface | Antiglare (Haze 1%) |
| Contrast Ratio | 4800:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | Super MVA, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 9.5 (Typ.)(G to G) |
| Glass Depth | - |
| Transmissivity | 5.35% (Typ.)(with Polarizer) |
| Display Colors | 16.7M 70% NTSC |
| Lamp Type | No B/L |
| Frequency | 60Hz |
| Touch Screen | Without |
| Driver IC | COFBuilt-in 8 source + 4 gate chips |
| Panel Weight | 1.64±0.08Kgs |
| Signal Interface | LVDS (2 ch, 8-bit) , 51 pins Connector |
| Input Voltage | 12.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -25 ~ 60 °C |
