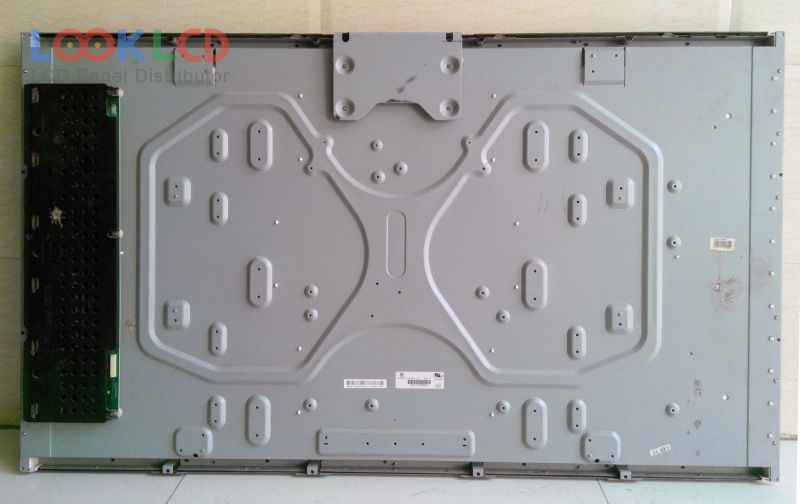

| PartNumber | V470H2-L01 |
| Brand | Innolux |
| Size | 47 |
| Application | LCTV |
| Resolution | 1920(RGB)×1080 , FHD |
| Composition | LCM |
| Brightness | 500 cd/m² (Typ.) |
| CR | 4000:1 |
| Colors | 16.7M |
| Backlight | CCFL |
| Interface | LVDS |
| Panel Brand | CMO |
| Panel Model | V470H2-L01 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 47 inch |
| Display Mode | Super MVA, Normally Black, Transmissive |
| Active Area | 1039.68×584.82 mm |
| Outline | 1096×640 mm |
| Surface | Antiglare (Haze 11%), Hard coating (3H) |
| Contrast Ratio | 4000:1 (Typ.) |
| Display Colors | 16.7M (8-bit), CIE193172% |
| Response Time | 6.5 (Typ.)(G to G) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥20)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 12 pcsCCFLEmbedded (Inverter) |
| Signal Interface | LVDS (2 ch, 8-bit), 51 pins |
| Input Voltage | 12.0V (Typ.) |
