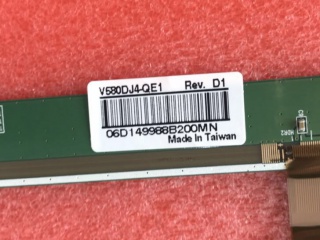

V580DJ4-QE1 Rev.D1

V580DJ4-QE1 Rev.D1
V580DJ4-QE1 Rev.D1 thumb
Brand
Innolux
Size
58
Application
TV Sets
Resolution
3840×2160
Composition
CELL,   a-Si TFT-LCD
Brightness
CR
5000:1
Colors
1.07B
Backlight
No
Interface
In Stock
12601
Specifications
PartNumber V580DJ4-QE1 Rev.D1
BrandInnolux
Size58
ApplicationTV Sets
Resolution3840×2160
CompositionCELL,   a-Si TFT-LCD
Brightness
CR5000:1
Colors1.07B
BacklightNo B/L
Interface
ManufacturerInnolux
Model NameV580DJ4-QE1 Rev.D1
Screen Size58 inch
Screen TypeCELL,   a-Si TFT-LCD
Pixel Number3840(RGB)×2160   (UHD)  76PPI
ArrangementRGB Vertical Stripe
Active Area(mm)1270.08 × 721.44 (H×V)
Outline(mm)-
Luminance0 cd/m²
Contrast Ratio5000 : 1 (Typ.) (TM)
Viewing Angle89/89/89/89 (Typ.)(CR≥10)
Response9.5 (Typ.)(G to G) ms
Good View atSymmetry
Work ModeSuper MVA, Normally Black, Transmissive
Color Depth1.07B   85% NTSC
Mass-
Used forTV Sets
Refresh Rate60Hz
TouchscreenWithout
Max. RatingsStorage Temp.: -20 ~ 60 °C    Operating Temp.: 0 ~ 50 °C
Family Model
LK580Z3LA13 SHARP 58 2560×1080
V580DJ2-QS5 Innolux 58 3840×2160
V580DK1-KS2 Innolux 58 3840×2160
V580DK1-LS1 Innolux 58 3840×2160
V580DK1-QS2 Innolux 58 3840×2160
V580DK2-KS1 Innolux 58 3840×2160
V580DK2-QS1 Innolux 58 3840×2160
V580HJ1-LE6 Innolux 58 1920×1080
V580HJ1-PD6 Innolux 58 1920×1080
V580HK1-LE6 Innolux 58 1920×1080
