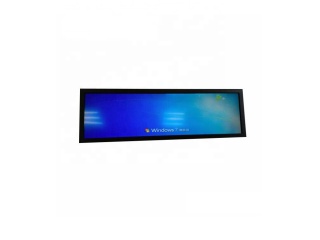

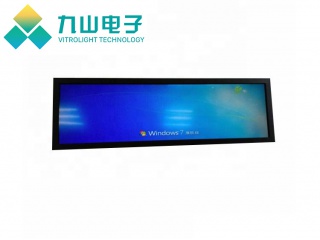

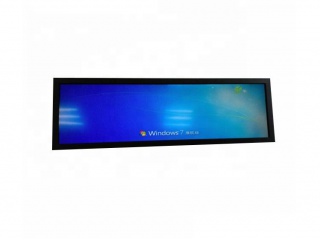

| PartNumber | VLT150-SBL-XGA-81 |
| Brand | Vitrolight |
| Size | 12.4 |
| Application | Stretched Bar LCD Di |
| Resolution | 1024×273 |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | |
| CR | 600:1 |
| Colors | 16.7M |
| Backlight | CCFL |
| Interface | |
| Diagonal Size | 12.4 inch (1/3 cut of 15.0") |
| Pixel Format | 1024(RGB)×273 85PPI |
| Active Area | 304.128(H)×81(V) mm |
| Luminance | 400 cd/m² (Typ.) |
| View Direction | - |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Support Color | 16.7M 72% NTSC |
| Weight | - |
| Frame Rate | 60Hz |
| Model | VLT150-SBL-XGA-81 |
| Type | a-Si TFT-LCD , LCM |
| Configuration | RGB Vertical Stripe |
| Outline Dim. | 326.5(H)×108.5(V) ×12(D) mm |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| Response Time | 6 (Typ.)(G to G) |
| Operating Mode | TN, Normally White, Transmissive |
| Light Source | CCFL |
| Designed For | Stretched Bar LCD Digital Signage |
| Touch Panel | Without |
