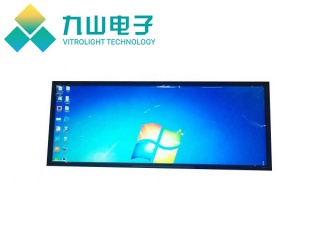

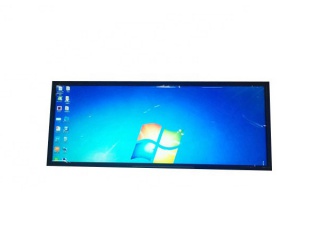

| PartNumber | VLT170-SBL-SXGA-135 |
| Brand | Vitrolight |
| Size | 14.3 |
| Application | Stretched Bar LCD Digital Signage |
| Resolution | 1280(RGB)×512, 96PPI |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | 400 cd/m² (Typ.) |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | Vitrolight |
| Panel Model | VLT170-SBL-SXGA-135 |
| Panel Size | 14.3" (1/2 cut of 17.0") |
| Panel Type | a-Si TFT-LCD, LCM |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 337.92(W)×135(H) mm |
| Bezel Opening | 341.92(W)×140.85(H) mm |
| Outline Size | 358.5(W)×162(H) ×10.3(D) mm |
| Surface | - |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | - |
| Response Time | 3.8 (Typ.)(G to G) |
| Display Colors | 16.7M 72% NTSC |
| Lamp Type | WLED |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | - |
| Signal Interface | LVDS (2 ch, 8-bit) |
| Environment | Operating Temp.: 0 ~ 50 °C ; - |
