| PartNumber | VLT320-SBL-FHD-257 |
| Brand | Vitrolight |
| Size | 29.3 |

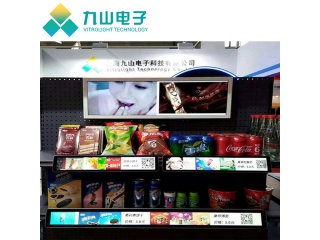

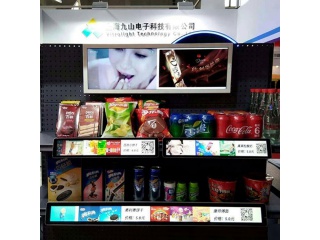

| Application | Digital Signage Stretched Bar LCD |
| Resolution | 1920(RGB)×708, 69PPI |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | 700 cd/m² (Typ.) |
| CR | 5000:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | Vitrolight |
| Panel Model | VLT320-SBL-FHD-257 |
| Panel Size | 29.3" (2/3 cut of 32") |
| Panel Type | a-Si TFT-LCD, LCM |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 698.4(W)×257.4(H) mm |
| Bezel Opening | 704.1(W)×259.04(H) mm |
| Outline Size | 728.27(W)×289.04(H) ×26.5(D) mm |
| Surface | - |
| Contrast Ratio | 5000:1 (Typ.) (TM) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥20) |
| Display Mode | SVA, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 8 (Typ.)(G to G) |
| Display Colors | 16.7M 72% NTSC |
| Lamp Type | WLED |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | - |
| Signal Interface | LVDS (2 ch, 8-bit) Connector |
| Environment | Operating Temp.: 0 ~ 50 °C ; - |
