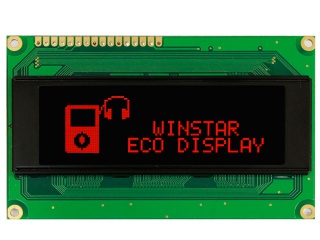

| PartNumber | WEG010032BR |
| Brand | Winstar |
| Size | 2.4 |
| Application | Instruments & Me |
| Resolution | 100×32 |
| Composition | OLED, PM-OLED |
| Brightness | |
| CR | |
| Colors | Mono(Red) |
| Backlight | self |
| Interface | |
| Manufacturer | Winstar |
| Model Name | WEG010032BR |
| Screen Size | 2.4 inch |
| Screen Type | OLED, PM-OLED |
| Pixel Number | 100×32 43PPI |
| Arrangement | Rectangle |
| Active Area(mm) | 58.95 × 19.15 (H×V) |
| Outline(mm) | 98 × 60 × 10 (H×V×D) |
| Bezel Area(mm) | 77 × 25.2 (H×V) |
| Treatment | - |
| Viewing Angle | - |
| Response | - |
| Good View at | Symmetry |
| Work Mode | - |
| Color Depth | Mono(Red) |
| Mass | - |
| Used for | Instruments & Meters |
| Refresh Rate | - |
| Touchscreen | Without |
| 5.0V (Typ.) |
