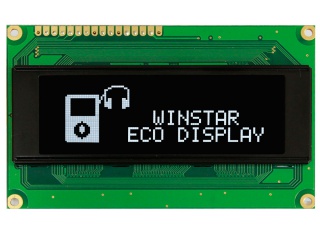

| PartNumber | WEG010032BW |
| Brand | Winstar |
| Size | 2.4 |
| Application | Instruments & Meters |
| Resolution | 100×32, 43PPI |
| Composition | PM-OLED, OLED |
| Brightness | |
| CR | |
| Colors | Mono(White) |
| Backlight | self |
| Interface | CPU/SPI |
| Panel Brand | Winstar |
| Panel Model | WEG010032BW |
| Panel Size | 2.4" |
| Panel Type | PM-OLED, OLED |
| Pixel Format | Rectangle |
| Display Area | 58.95(W)×19.15(H) mm |
| Bezel Opening | 77(W)×25.2(H) mm |
| Outline Size | 98(W)×60(H) ×10(D) mm |
| Surface | - |
| Viewing Angle | - |
| Display Mode | - |
| Best View on | Symmetry |
| Response Time | - |
| Display Colors | Mono(White) |
| Lamp Type | self |
| Frequency | - |
| Touch Screen | Without |
| Driver IC | COG Built-in WS0010 |
| Panel Weight | - |
| Signal Interface | CPU/SPI , 16 pins FPC |
| Input Voltage | 5.0V (Typ.) |
