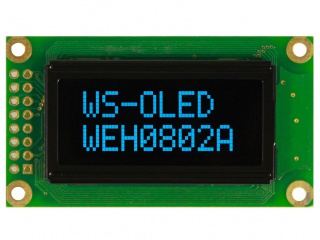

| PartNumber | WEH000802AB |
| Brand | Winstar |
| Size | 1.2 |
| Application | Instruments & Meters |
| Resolution | 5×8 |
| Composition | PM-OLED , OLED |
| Brightness | |
| CR | |
| Colors | Mono(Blue) |
| Backlight | self |
| Interface | |
| Diagonal Size | 1.2 inch |
| Char Format | 5×8 dots |
| Font Size | 2.96×5.56 mm |
| Active Area | 28.16(H)×11.89(V) mm |
| Bezel Area | 38(H)×16(V) mm |
| View Direction | Symmetry |
| Viewing Angle | - |
| Support Color | Mono(Blue) |
| Weight | - |
| Frame Rate | - |
| Model | WEH000802AB |
| Type | PM-OLED , OLED |
| Font Pitch | 3.6×6.3 mm |
| Outline Dim. | 58(H)×32(V) ×10(D) mm |
| Treatment | - |
| Response Time | - |
| Operating Mode | - |
| Light Source | self |
| Designed For | Instruments & Meters |
| Touch Panel | Without |
