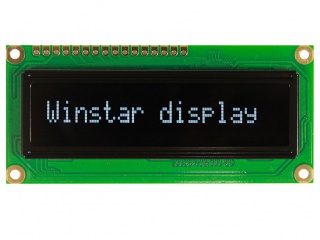

| PartNumber | WEH001601AW |
| Brand | Winstar |
| Size | 2.6 |
| Application | Instruments & Meters |
| Resolution | 16×17 |
| Composition | PM-OLED, OLED |
| Brightness | |
| CR | |
| Colors | Mono(White) |
| Backlight | self |
| Interface | CPU/SPI |
| Panel Brand | Winstar |
| Panel Model | WEH001601AW |
| Panel Size | 2.6" |
| Panel Type | PM-OLED, OLED |
| Display Format | 16 characters × 1 lines, 7PPI |
| Font Format | 5×8 dots |
| Character Size | 2.95×6.35(W×H) mm |
| Character Pitch | 3.6×6.35(W×H) mm |
| Display Area | 56.95(W)×6.35(H) mm |
| Bezel Opening | 66(W)×16(H) mm |
| Outline Size | 80(W)×36(H) ×10(D) mm |
| Surface | - |
| Viewing Angle | - |
| Display Mode | - |
| Best View on | Symmetry |
| Response Time | - |
| Display Colors | Mono(White) |
| Lamp Type | self |
| Frequency | - |
| Touch Screen | Without |
| Driver IC | COBBuilt-in WS0010 |
| Panel Weight | - |
| Signal Interface | CPU/SPI , 16 pins Pad |
| Input Voltage | 5.0V (Typ.) |
