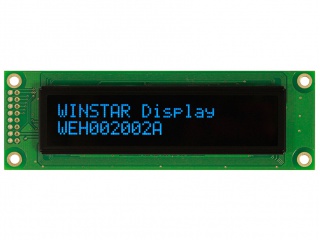

| PartNumber | WEH002002AB |
| Brand | Winstar |
| Size | 3.1 |
| Application | Instruments & Meters |
| Resolution | 20×26 |
| Composition | PM-OLED, OLED |
| Brightness | |
| CR | |
| Colors | Mono(Blue) |
| Backlight | self |
| Interface | CPU/SPI |
| Panel Brand | Winstar |
| Panel Model | WEH002002AB |
| Panel Size | 3.1" |
| Panel Type | PM-OLED, OLED |
| Display Format | 20 characters × 2 lines, 6PPI |
| Font Format | 5×8 dots |
| Character Size | 3.2×5.55(W×H) mm |
| Character Pitch | 3.9×6.3(W×H) mm |
| Display Area | 77.3(W)×11.85(H) mm |
| Bezel Opening | 85(W)×18.6(H) mm |
| Outline Size | 116(W)×37(H) ×9.8(D) mm |
| Surface | - |
| Viewing Angle | - |
| Display Mode | - |
| Best View on | Symmetry |
| Response Time | - |
| Display Colors | Mono(Blue) |
| Lamp Type | self |
| Frequency | - |
| Touch Screen | Without |
| Driver IC | COB Built-in WS0010 |
| Panel Weight | - |
| Signal Interface | CPU/SPI , 16 pins Pad |
| Input Voltage | 5.0V (Typ.) |
| AMFN888 | Samsung | 3.1 | 480×800 |
| EL160.120.39 | Lumineq | 3.1 | 160×120 |
| EL160.120.39 CC | Lumineq | 3.1 | 160×120 |
| HGS256641-Y-EH-LV | Other | 3.1 | 256×64 |
| LT031MDZ4000 | JDI | 3.1 | 720×720 |
| RGS31256032WH000 | RiTdisplay | 3.1 | 256×32 |
| UG-5664ALBEF01 | WiseChip | 3.1 | 256×64 |
| UG-5664ASGEF01 | WiseChip | 3.1 | 256×64 |
| UG-5664ASWEF01 | WiseChip | 3.1 | 256×64 |
| UG-5664ASYEF01 | WiseChip | 3.1 | 256×64 |
