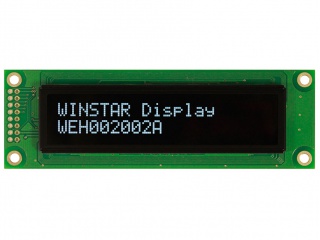

| PartNumber | WEH002002AW |
| Brand | Winstar |
| Size | 3.1 |
| Application | Instruments & Me |
| Resolution | 5×8 |
| Composition | PM-OLED, OLED |
| Brightness | |
| CR | |
| Colors | Mono(White) |
| Backlight | self |
| Interface | CPU/SPI |
| Model | WEH002002AW |
| Diagonal Size | 3.1 inch |
| Type | PM-OLED, OLED |
| Char Format | 5×8 dots |
| Font Size | 3.2×5.55 mm |
| Font Pitch | 3.9×6.3 mm |
| Active Area | 77.3(H)×11.85(V) mm |
| Outline Dim. | 116(H)×37(V) ×9.8(D) mm |
| Bezel Area | 85(H)×18.6(V) mm |
| Treatment | - |
| View Direction | Symmetry |
| Response Time | - |
| Viewing Angle | - |
| Operating Mode | - |
| Support Color | Mono(White) |
| Light Source | self |
| Weight | - |
| Designed For | Instruments & Meters |
| Frame Rate | - |
| Touch Panel | Without |
| D-IC Detail | COB Built-in WS0010 |
| Interface Type | CPU/SPI , 16 pins Pad |
| Power Supply | 5.0V (Typ.) |
