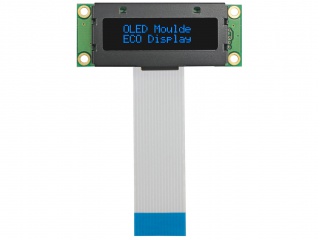

| PartNumber | WEO001602BB |
| Brand | Winstar |
| Size | 1.22 |
| Application | Instruments & Me |
| Resolution | 5×8 |
| Composition | PM-OLED, OLED |
| Brightness | |
| CR | |
| Colors | Mono(Blue) |
| Backlight | self |
| Interface | |
| Model | WEO001602BB |
| Diagonal Size | 1.22 inch |
| Type | PM-OLED, OLED |
| Char Format | 5×8 dots |
| Font Size | 1.66×2.84 mm |
| Font Pitch | 1.94×3.11 mm |
| Active Area | 30.69(H)×5.94(V) mm |
| Outline Dim. | 53(H)×20(V) ×7.6(D) mm |
| Bezel Area | 36(H)×10(V) mm |
| Treatment | - |
| View Direction | Symmetry |
| Response Time | - |
| Viewing Angle | - |
| Operating Mode | - |
| Support Color | Mono(Blue) |
| Light Source | self |
| Weight | - |
| Designed For | Instruments & Meters |
| Frame Rate | - |
| Touch Panel | Without |
| 5.0V (Typ.) |
