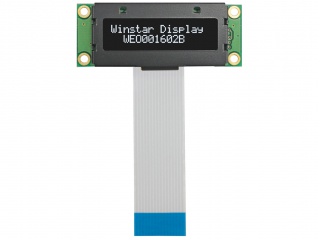

| PartNumber | WEO001602BW |
| Brand | Winstar |
| Size | 1.22 |
| Application | Instruments & Meters |
| Resolution | 16×213 |
| Composition | PM-OLED, OLED |
| Brightness | |
| CR | |
| Colors | Mono(White) |
| Backlight | self |
| Interface | CPU/SPI |
| Panel Brand | Winstar |
| Panel Model | WEO001602BW |
| Panel Size | 1.22" |
| Panel Type | PM-OLED, OLED |
| Display Format | 16 characters × 2 lines, 13PPI |
| Font Format | 5×8 dots |
| Character Size | 1.66×2.84(W×H) mm |
| Character Pitch | 1.94×3.11(W×H) mm |
| Display Area | 30.69(W)×5.94(H) mm |
| Bezel Opening | 36(W)×10(H) mm |
| Outline Size | 53(W)×20(H) ×7.6(D) mm |
| Surface | - |
| Viewing Angle | - |
| Display Mode | - |
| Best View on | Symmetry |
| Response Time | - |
| Display Colors | Mono(White) |
| Lamp Type | self |
| Frequency | - |
| Touch Screen | Without |
| Driver IC | COGBuilt-in WS0012 |
| Panel Weight | - |
| Signal Interface | CPU/SPI , 16 pins FPC |
| Input Voltage | 5.0V (Typ.) |
